HGDL009
HG DL series is a flexible, free maintain LED Down light. It is the simplest platform to achieve optimal balance between performance and cost. The luminaire is specially designed for ME3~5 type roads applications.
Applications
- Crossroad
- Plaza
- Football Field
- Airport
Features
- IP65 protection and robust design
- Robust mechanical design for extreme outdoor environment
- High efficacy
- Up to 170 lm/W high efficacy
- Professional optical design
- Best use of light to the target area while not creating glare to driver and environment
- Long lifetime
- 50,000 hours lifetime saving maintenance cost
- Environmental friendly
- No hazardous materials
Rare Earth Superconducting Technology
The LED and heat dissipation device use patented welding technology. Silver- gallium alloy together with carbon nano tube participate in heat conduction, so that the heat of the light source can be instantaneously and evenly conducted to each part of the radiator, to effectively reduce LED junction temperature, improve light efficiency and lengthen service life.
Surface Nano Silicon Powder Sea Salt Resisting Technology
The light surface uses nano silicon powder ceramic spray coating technology, providing excellent heat dissipation, improving light source performance, lengthening service life. The light is high temperature resistant, acid/alkali-resistant and sea salt resistant, with service life longer than 25 years.
*The above two technologies are original in the world and have been patented.
Specifications
| CCT | 3000K, 4000K, 5700K |
| CRI (Ra) | >70 |
| SDCM | 5 |
| Beam Angle | 150° × 60° 150° × 70° |
Specifications
| Power Consumption | 300W/600W |
| Power Factor | >0.95 |
| Total Harmonic Distortion | <15% |
| ESD Protection | Contact 4KV, Air 8KV |
| Surge Protection | Line-to-line 5KV, Line-to-ground 10KV |

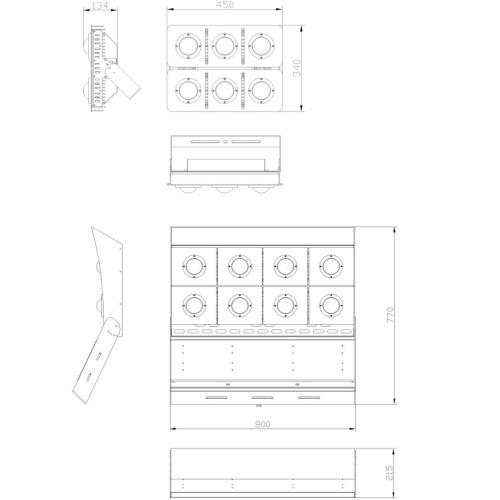

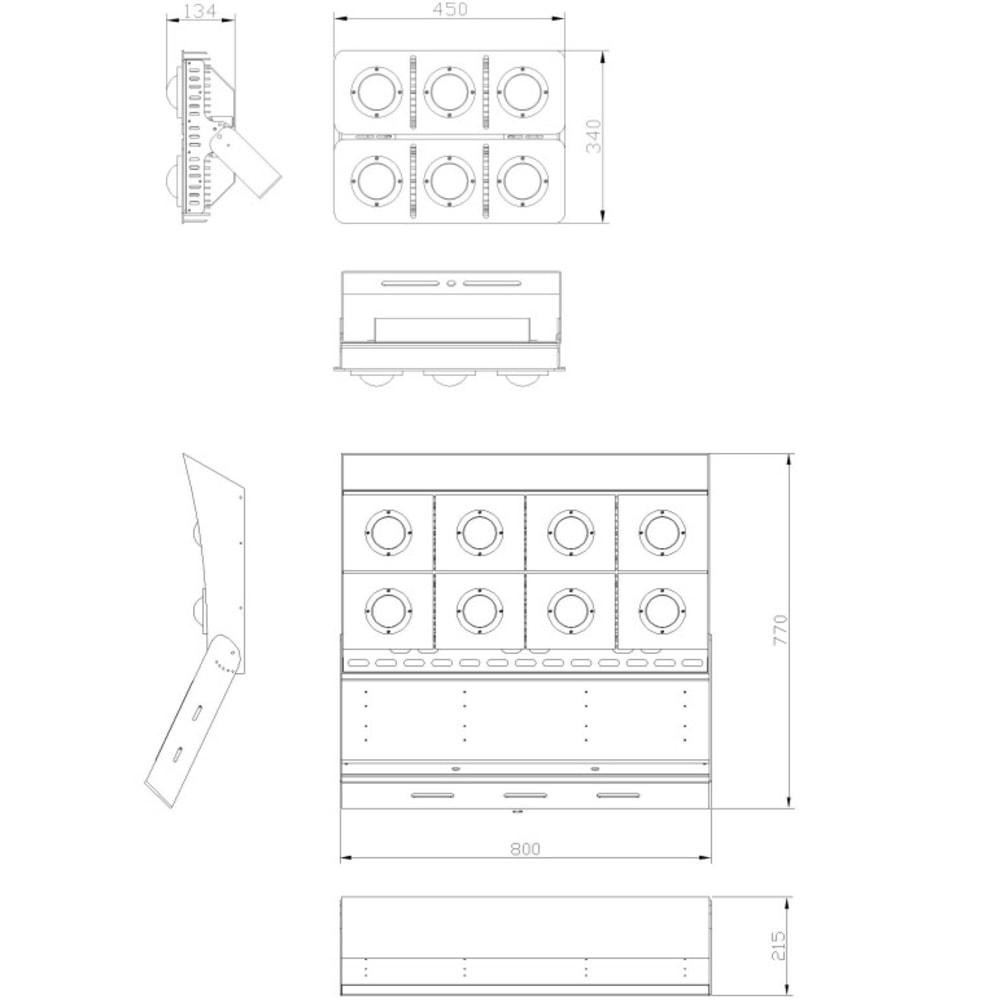

| Dimensions (L/W/H) | 340mm/450mm/134mm 770mm/800mm/215mm |
| Weight | 14kg/25kg |
| Cover Lens | Glass lens |
| Housing | Die-casting aluminium |
Specifications
| Power | AC only |
| Dimmable | ON/OFF, \*\*time dimming, \*\*1-10V dimming and \*\*PWM dimming (Time dimming, 1-10V dimming and PWM dimming can be customized except 30W) |
| Mounting Type | Side-entry mounting |
| Operating Temperature | −30°C to +50°C |
| Storage Temperature | −30°C to +85°C |
| Environment | Outdoor (IP65) |
| Lumen Maintenance | L70@25°C - 50,000hrs |
| Safety Approval | Electrical Protection Class I (AC), Electrical Protection Class III (DC), CB, CQC, RoHS, CB,CQC, RoHS, EHS |
